Street Pole Series

Street Pole Series

  • Street Pole SERIES

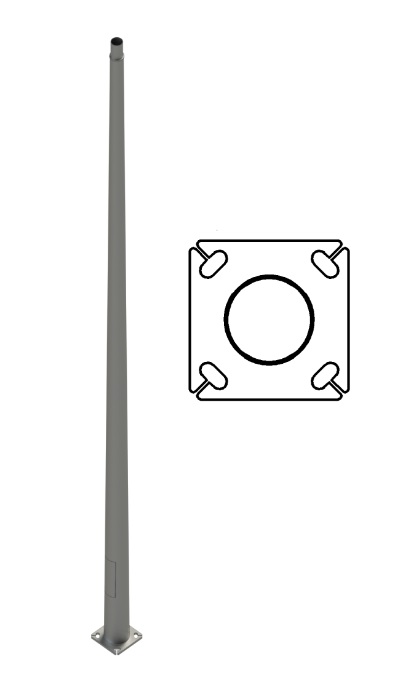

RL-LPTP

We present our “Street Pole” collection as a perfect addition to our diverse selection of solar lighting and energy products. Our poles are designed to cater to your specific needs, offering a range of options such as a one-piece tapered steel pole, a heavy-duty hinged foldable pole, and our two-piece pole. Each pole is equipped with an outreach arm of different lengths to accommodate the LED light head.

Specification:

  • Type: Tapered
  • Pole height: 5.5-11.5M
  • Top Pole O/D Options: 76mm/ 89mm
  • Material: Q235 Steel
  • Thickness: 3.0mm
  • Surface Treatment: Hot Dip Galvanized or Powder Coated
  • Shape: Round
  • Base Plate: 300*300*12mm

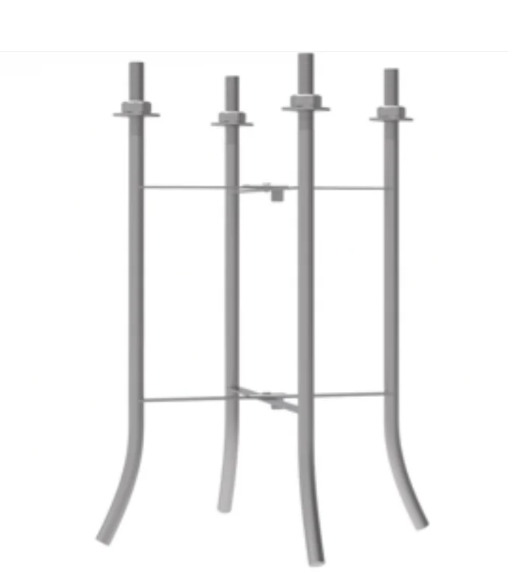

  • Ground Anchor Cage Included
  • Street Pole SERIES

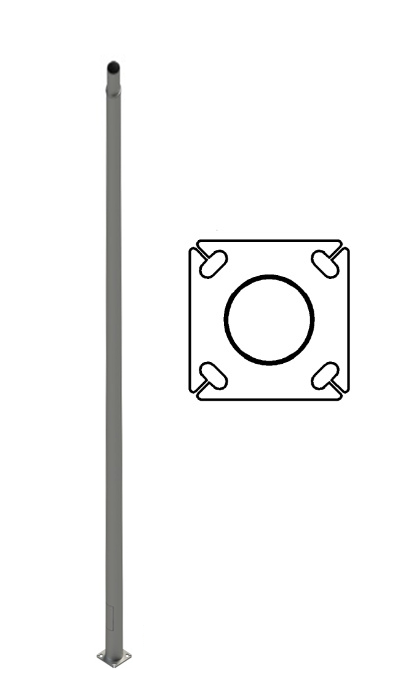

RL-LPST

We present our “Street Pole” collection as a perfect addition to our diverse selection of solar lighting and energy products. Our poles are designed to cater to your specific needs, offering a range of options such as a one-piece tapered steel pole, a heavy-duty hinged foldable pole, and our two-piece pole. Each pole is equipped with an outreach arm of different lengths to accommodate the LED light head.

Specification:

  • Type: Straight
  • Pole height: 5.5-11.5M
  • Pole O/D Options: 76mm / 89mm
  • Material: Q235 Steel
  • Thickness: 3.0mm
  • Surface Treatment: Hot Dip Galvanized or Powder Coated
  • Shape: Round
  • Base Plate: 250*250*12mm
  • Ground Anchor Cage Included
  • STREET POLE SERIES

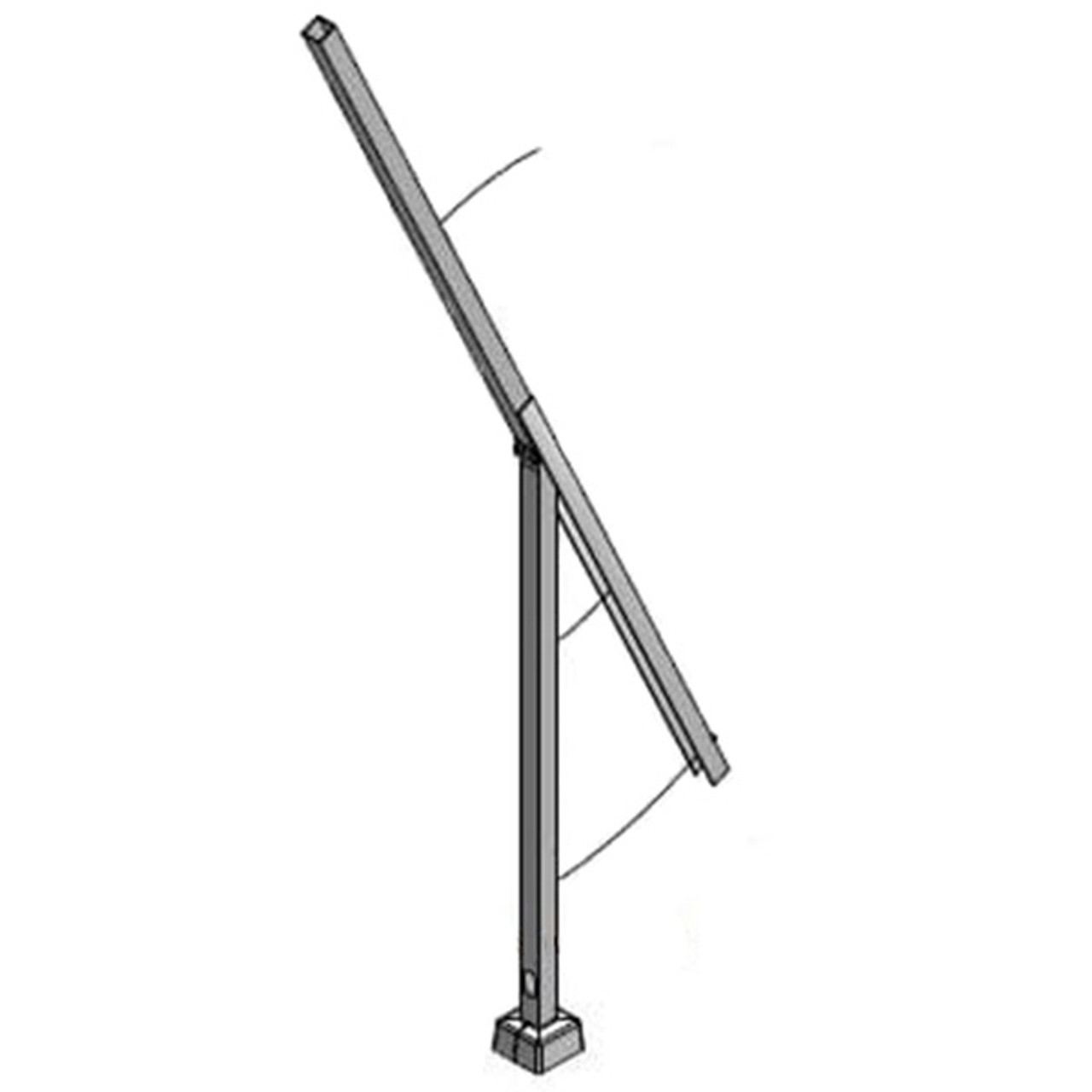

RL-LPFD

We present our “Street Pole” collection as a perfect addition to our diverse selection of solar lighting and energy products. Our poles are designed to cater to your specific needs, offering a range of options such as a one-piece tapered steel pole, a heavy-duty hinged foldable pole, and our two-piece pole. Each pole is equipped with an outreach arm of different lengths to accommodate the LED light head.

Specification:

  • Type: Hinged Foldable
  • Pole height: 5.5-11.5M
  • Material: Q235 Steel
  • Thickness: 4.75-5.75mm
  • Surface Treatment: Hot Dip Galvanized
  • Shape: Round
  • Base Plate: 450*450*25mm
  • Outreach: 60mm O/D 0.5m – 2.0m
  • Requires RL-LPWC to operate
  • STREET POLE SERIES

RL-LP2P

We present our “Street Pole” collection as a perfect addition to our diverse selection of solar lighting and energy products. Our poles are designed to cater to your specific needs, offering a range of options such as a one-piece tapered steel pole, a heavy-duty hinged foldable pole, and our two-piece pole. Each pole is equipped with an outreach arm of different lengths to accommodate the LED light head.

Specification:

  • Type: 2 Piece
  • Pole height: 5.0-6.0M
  • Pole Top O/D: 76mm
  • Material: Q235 Steel
  • Thickness: 3.0mm
  • Surface Treatment: Hot Dip Galvanized or Powder Coated
  • Shape: Round
  • Base Plate: 300*300*12mm
  • Ground Anchor cage included.
  • STREET POLE SERIES

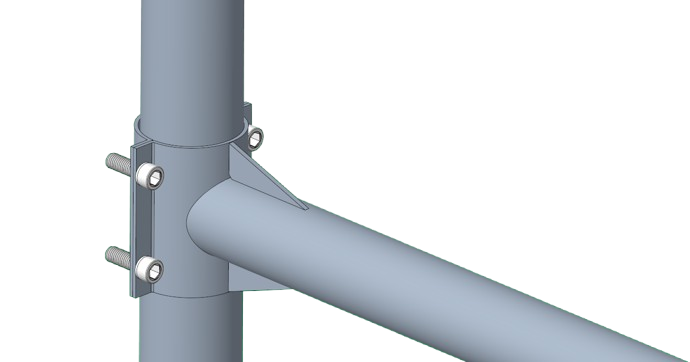

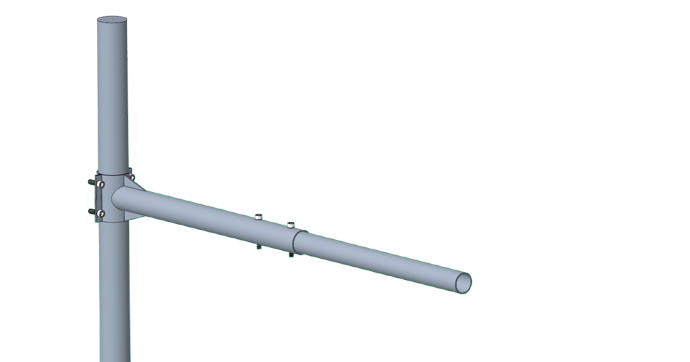

RL-OR

We present our “Outreach” series to compliment our range of “Street Poles”. The outreach is designed to hold the light head and comes in 2 configurations; fixed and extendable. Our extendable type outreach  allows for varied lengths to suit different applications.

Specification:

  • Type 1. Extendable from 700mm – 1300mm
  • Type 2. Fixed 400mm, 800mm, 1200mm
  • Pole O/D: 48mm
  • Material: Q235 Steel
  • Thickness: 2mm
  • Surface Treatment: Hot Dip Galvanized or Powder Coated.
  • STREET POLE SERIES

RL-LPWC

We present our “Street Pole” collection as a perfect addition to our diverse selection of solar lighting and energy products. Our poles are designed to cater to your specific needs, offering a range of options such as a one-piece tapered steel pole, a heavy-duty hinged foldable pole, and our two-piece pole. Each pole is equipped with an outreach arm of different lengths to accommodate the LED light head.

Specification:

  • Type: Winch + Stainless Rope
  • Material: Winch (Steel) Tope (Stainless Steel)

SPECIFICATIONS
