  • ALL IN ONE SERIES

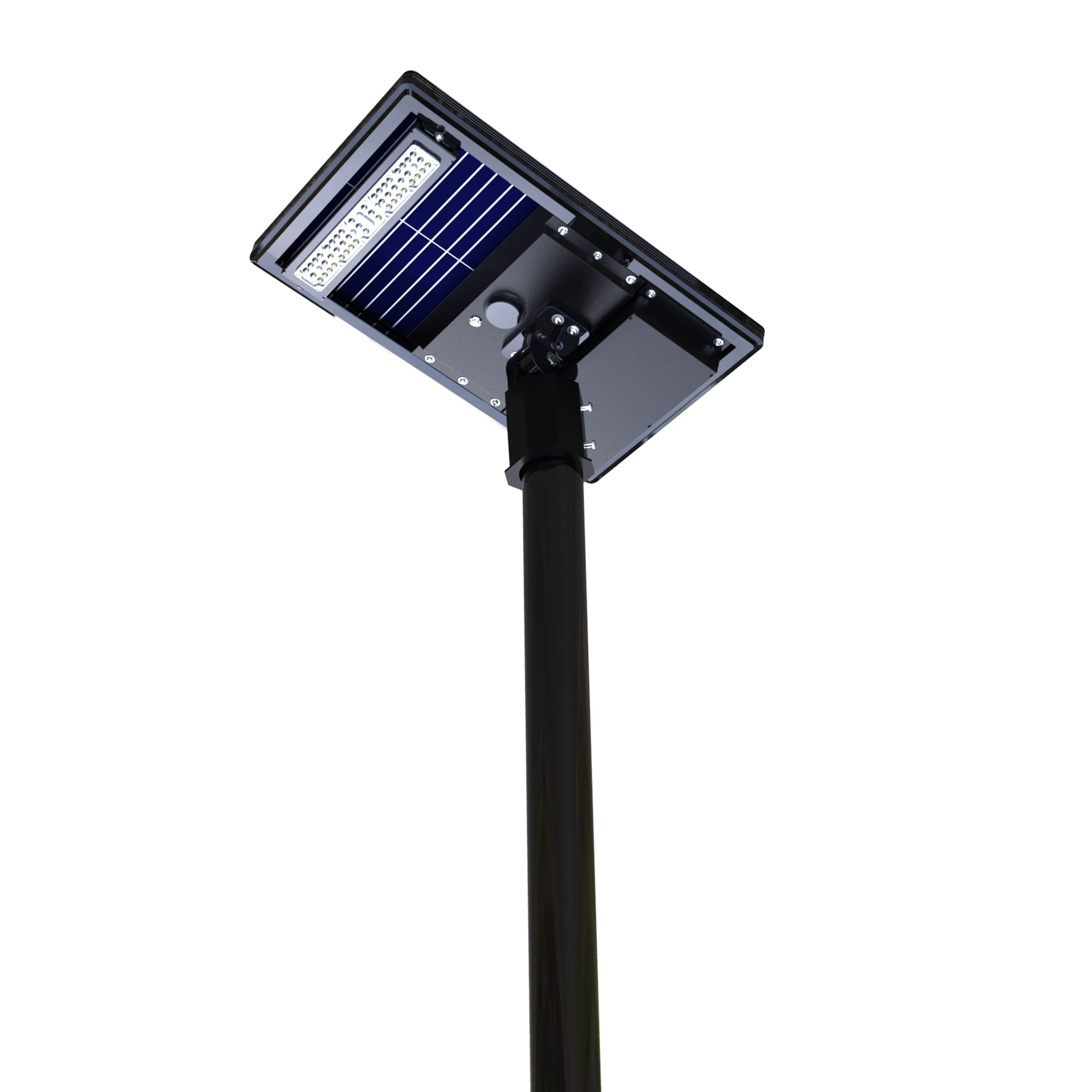

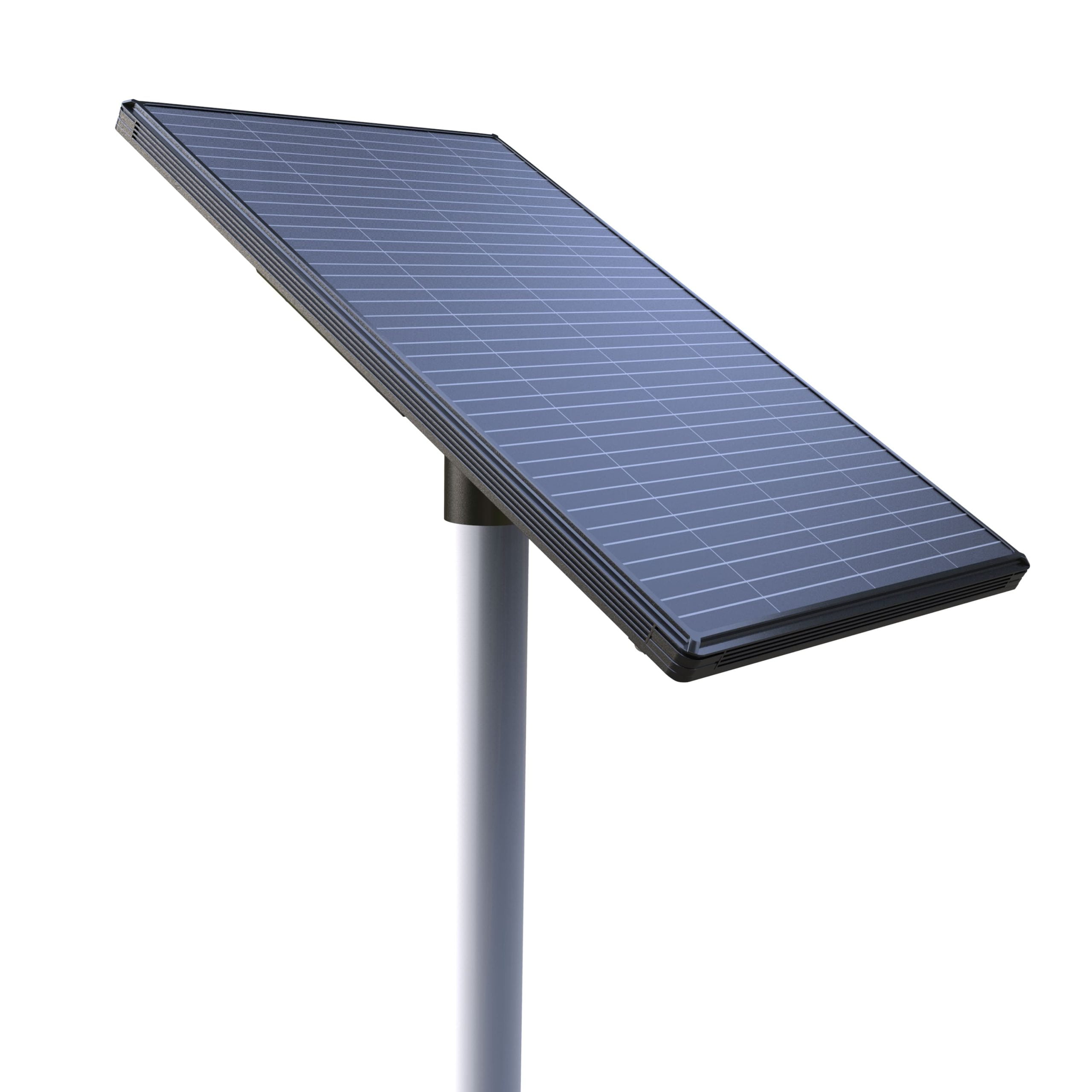

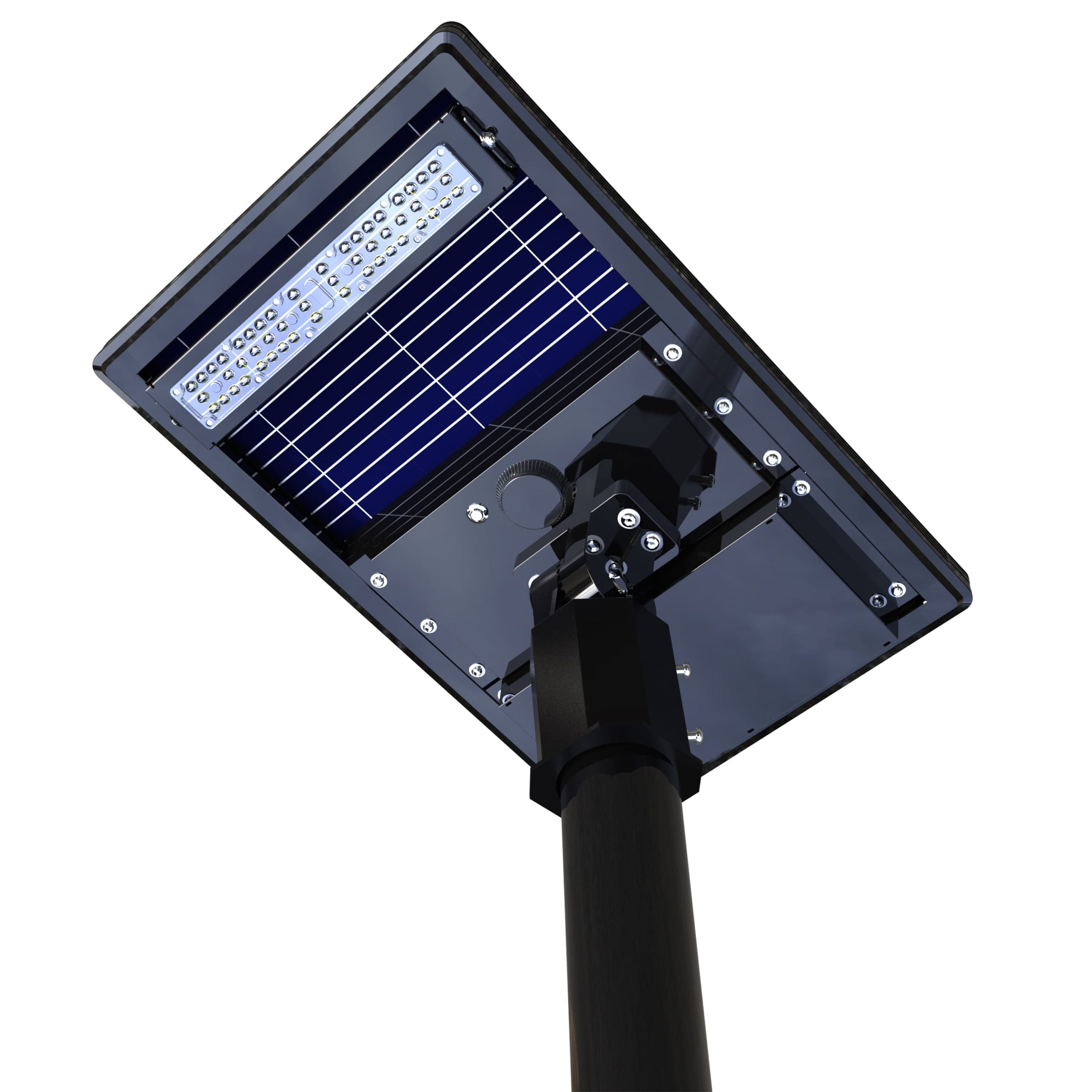

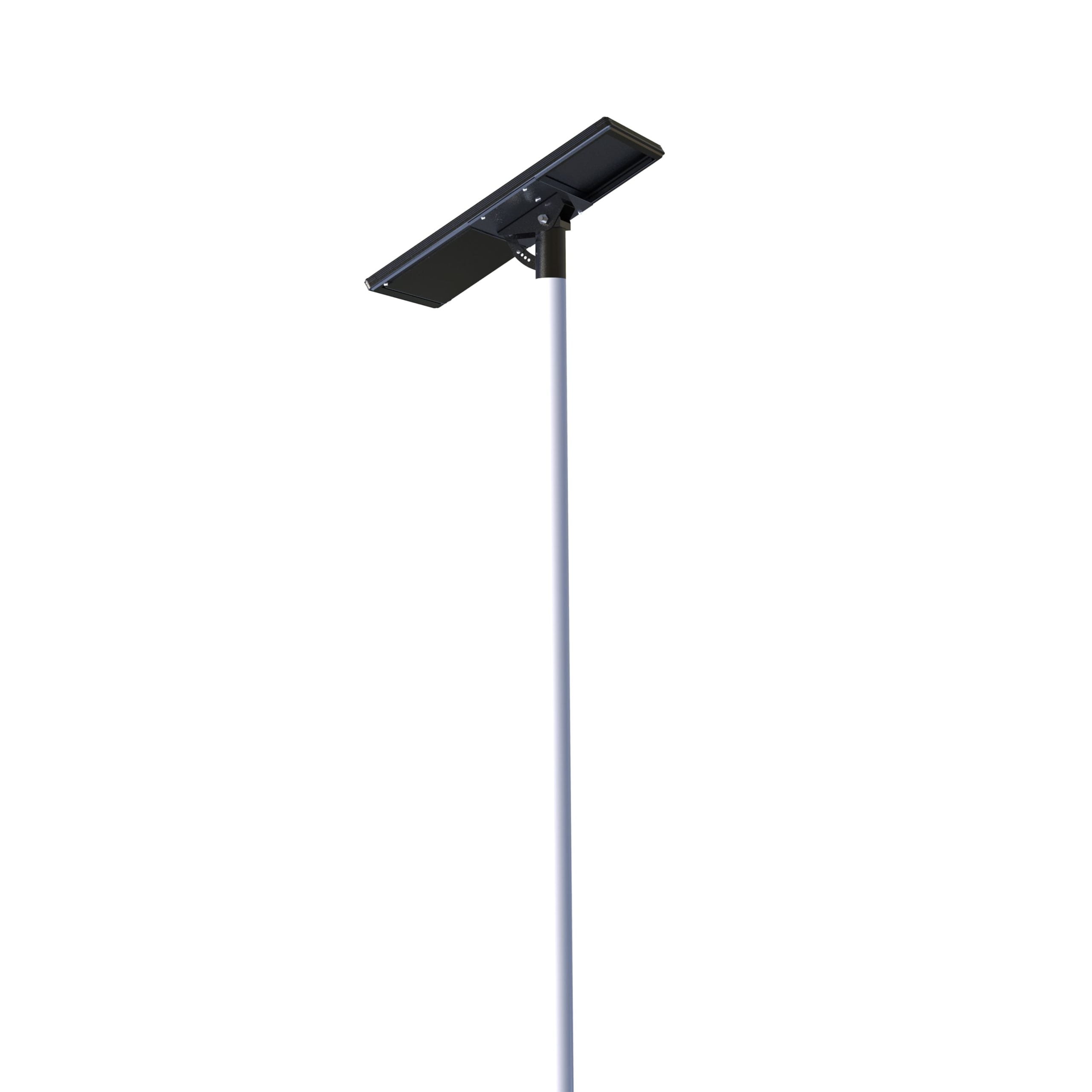

RL-AS40L15

Specification:

  • LED Output: 15W
  • Power: 40W
  • Batt Capacity: 614.4Wh 48AH @12.8V
  • Efficiency: 25%
  • Type of solar panel: Black Mono Crystalline Bi-Facial
  • Life cycle: >1200 cycles (5 years warranty)
  • Charging time: 6-8 hrs/day
  • Pole height: 5-5.5m
  • Distance: 25-35m

Controlled via RF Remote, Bluetooth or Lora the “All In One Series” from Raylightenergy will have you covered for all types of applications.
  • ALL IN ONE SERIES

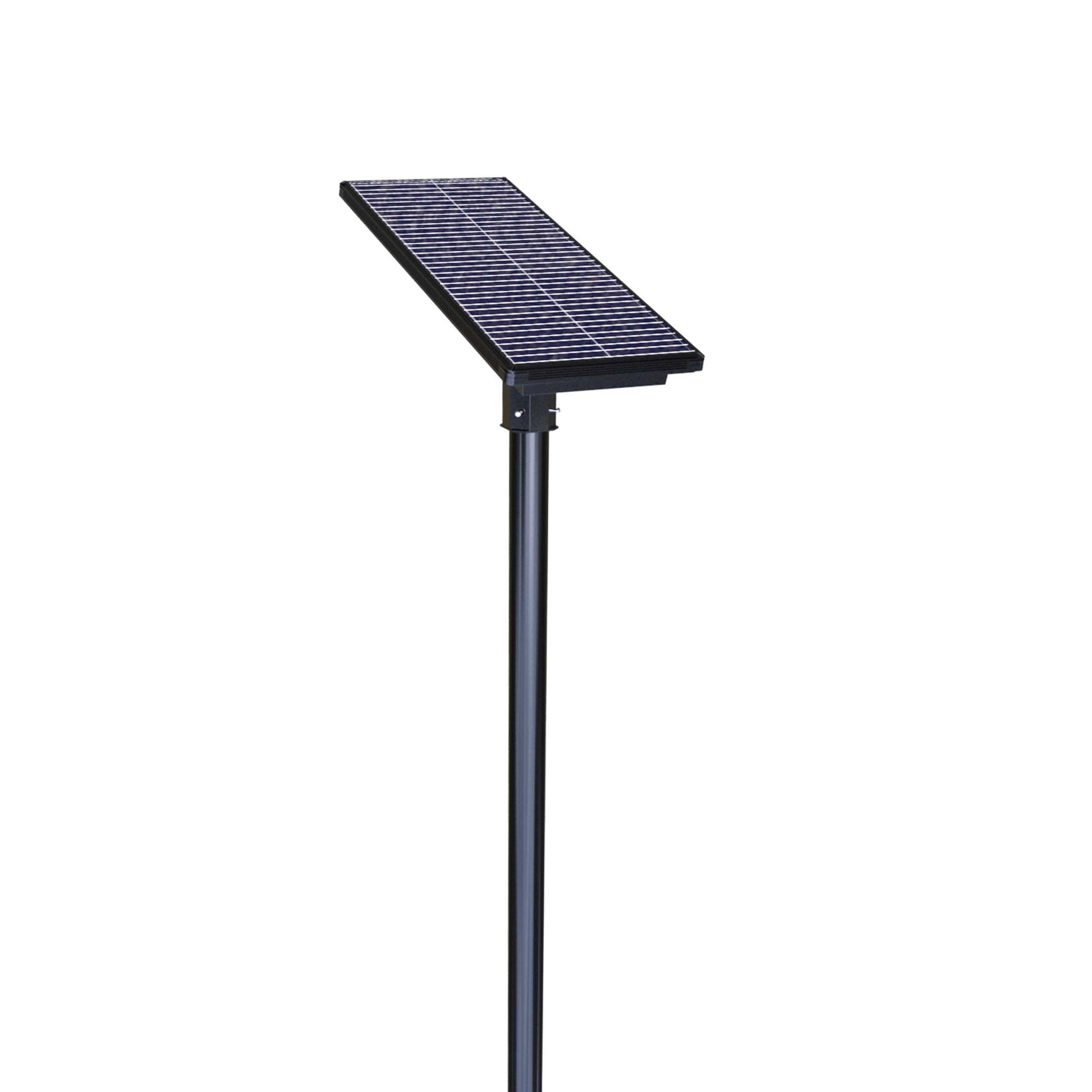

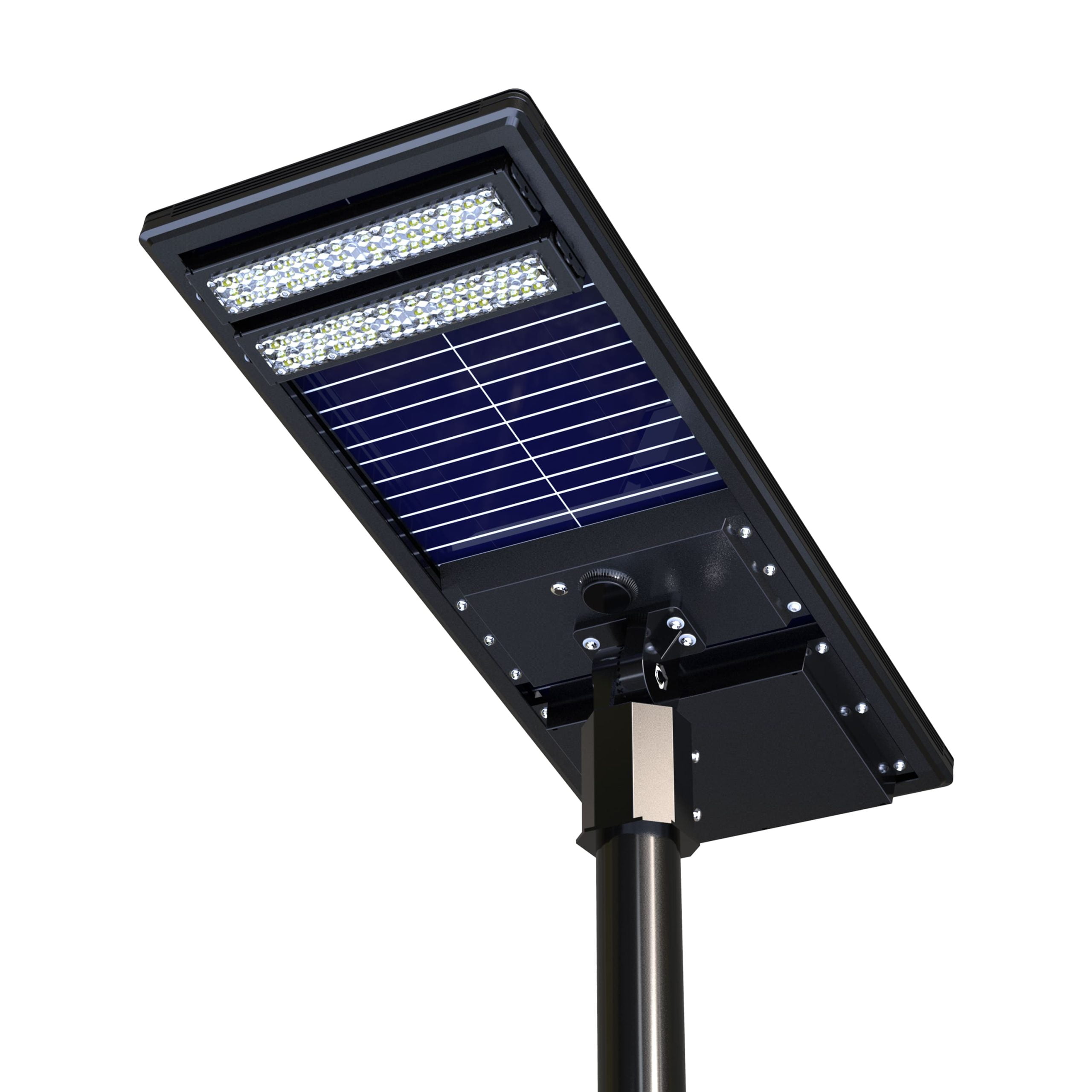

RL-AS80L30

Specification:

  • LED Output: 30W
  • Power: 80W
  • Batt Capacity: 768Wh 60AH @12.8V
  • Efficiency: 25%
  • Type of solar panel: Black Mono Crystalline Bi-Facial
  • Life cycle: >1200 cycles (5 years warranty)
  • Charging time: 6-8 hrs/day
  • Pole height: 5.5-6 m
  • Distance: 25-35 m

Controlled via RF Remote, Bluetooth or Lora the “All In One Series” from Raylightenergy will have you covered for all types of applications.
  • ALL IN ONE SERIES

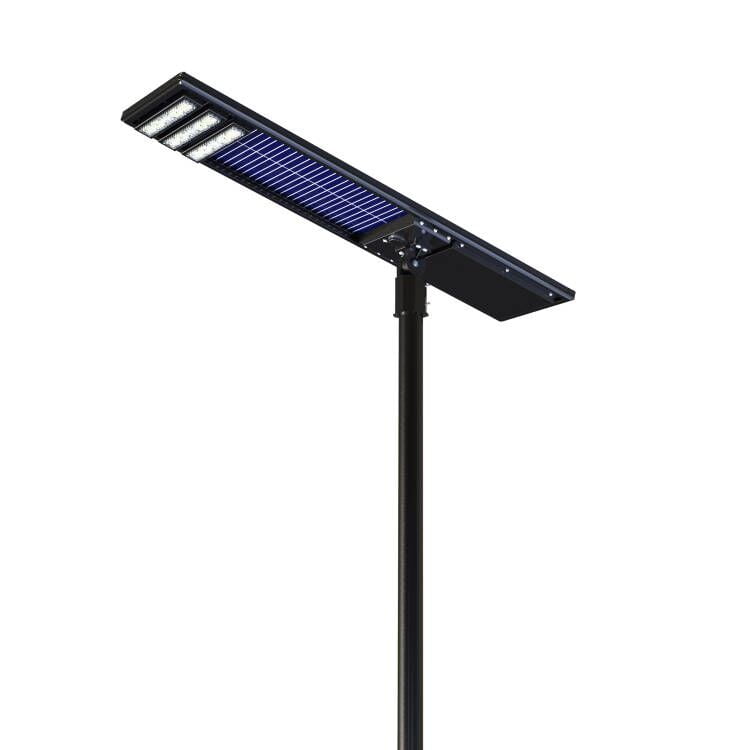

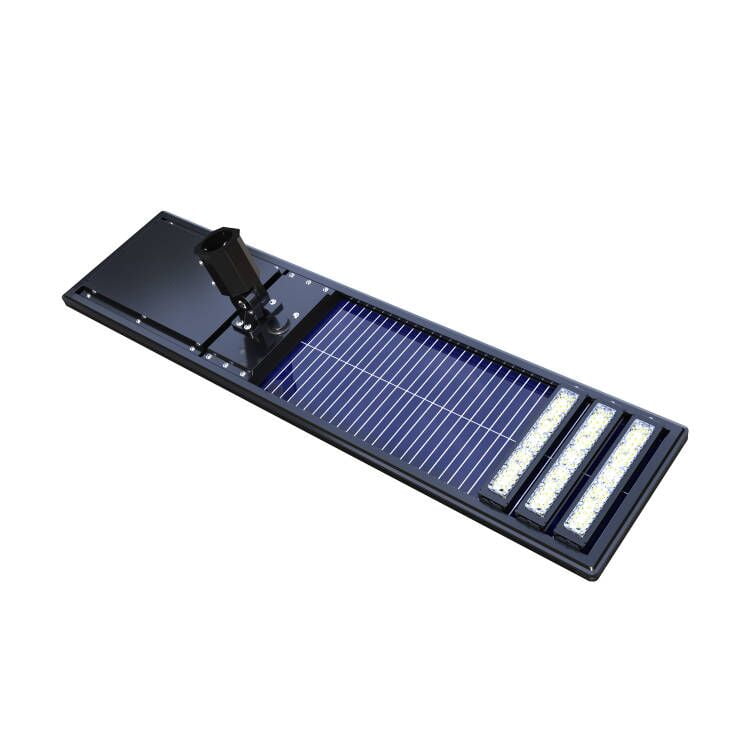

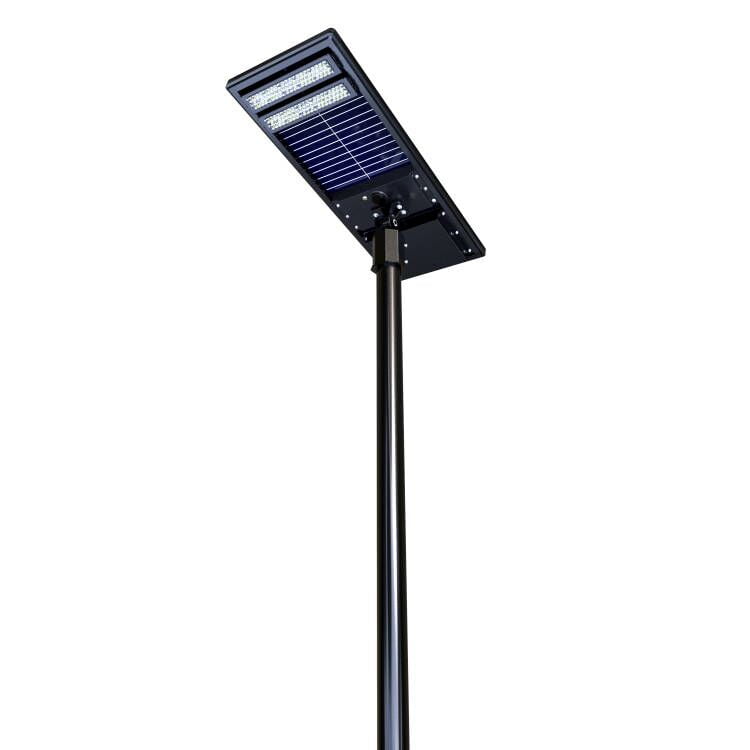

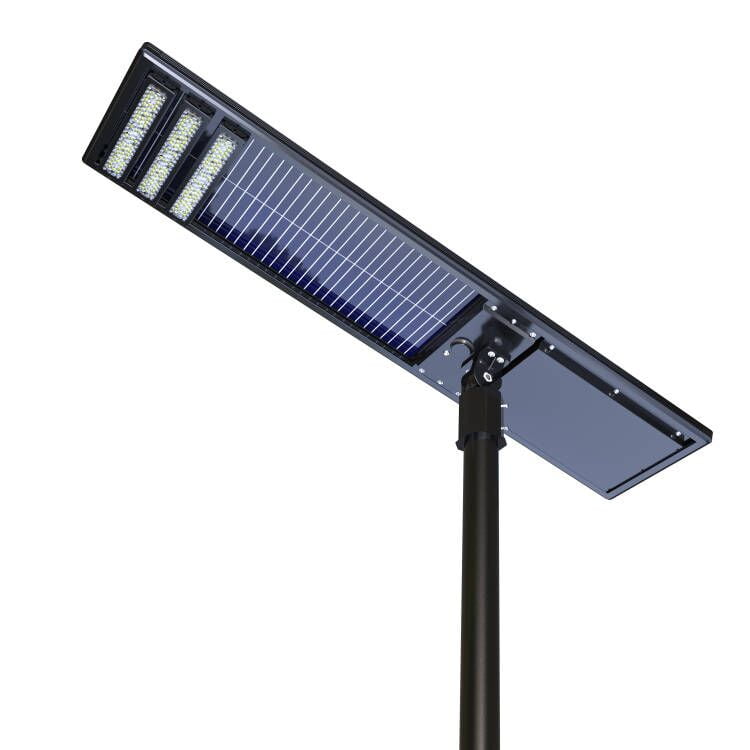

RL-AS130L60

Specification:

  • LED Output: 60W
  • Power: 130W
  • Batt Capacity: 998.4Wh 78AH @12.8V
  • Efficiency: 25%
  • Type of solar panel: Black Mono Crystalline Bi-Facial
  • LED output: 60W
  • Life cycle: >1200 cycles (5 years warranty)
  • Charging time: 6-8 hrs/day
  • Pole height: 6-10 m
  • Distance: 35-45 m

Controlled via RF Remote, Bluetooth or Lora the “All In One Series” from Raylightenergy will have you covered for all types of applications.
  • ALL IN ONE SERIES

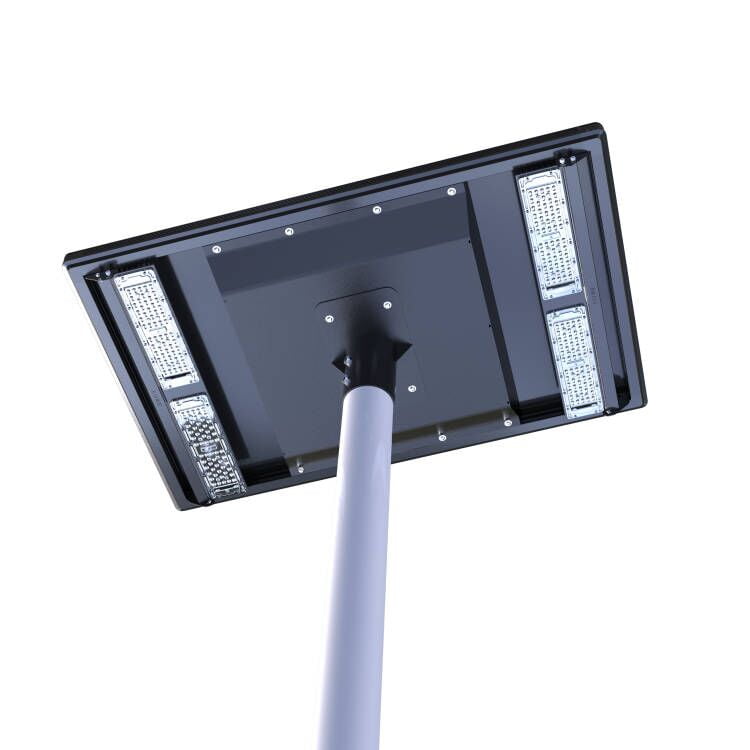

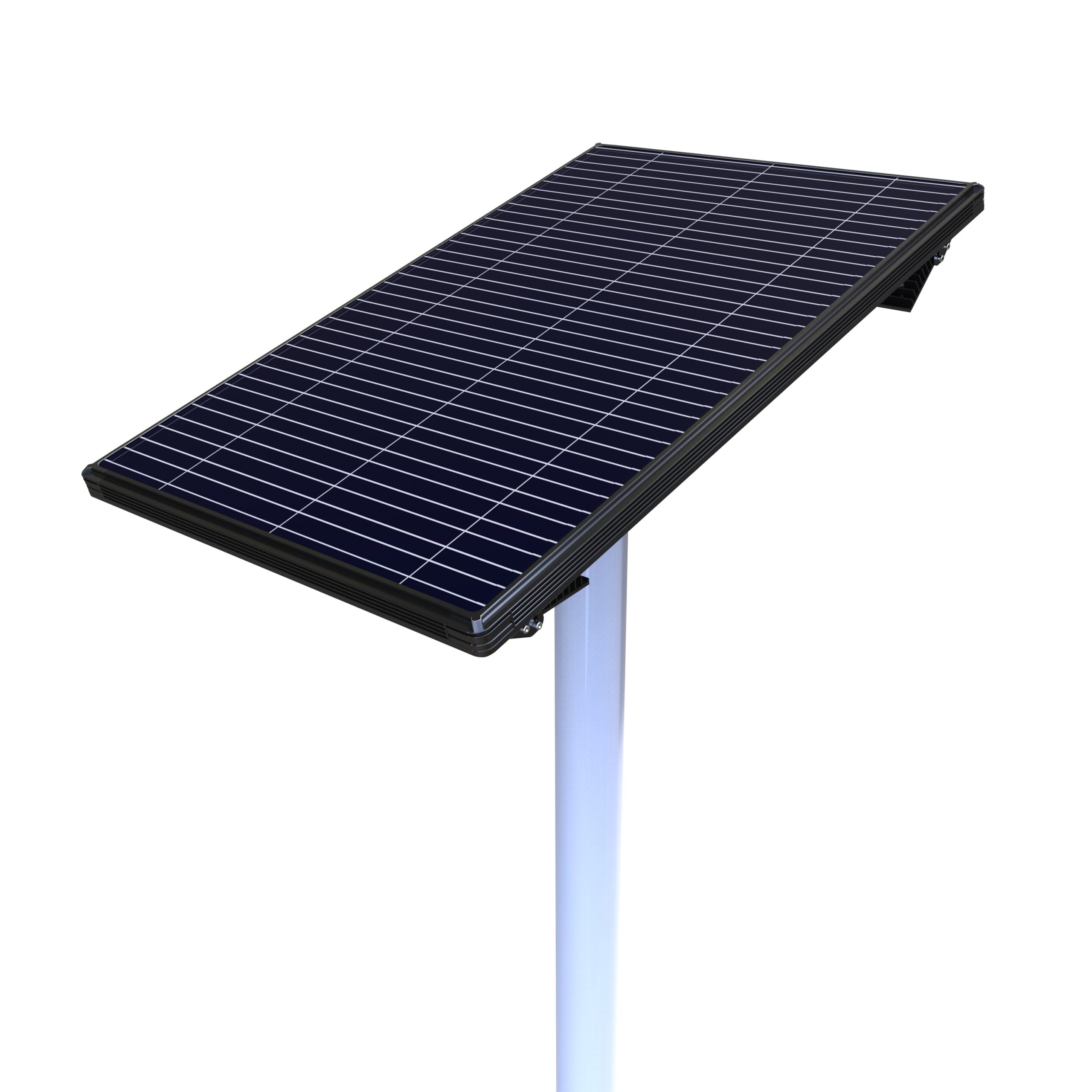

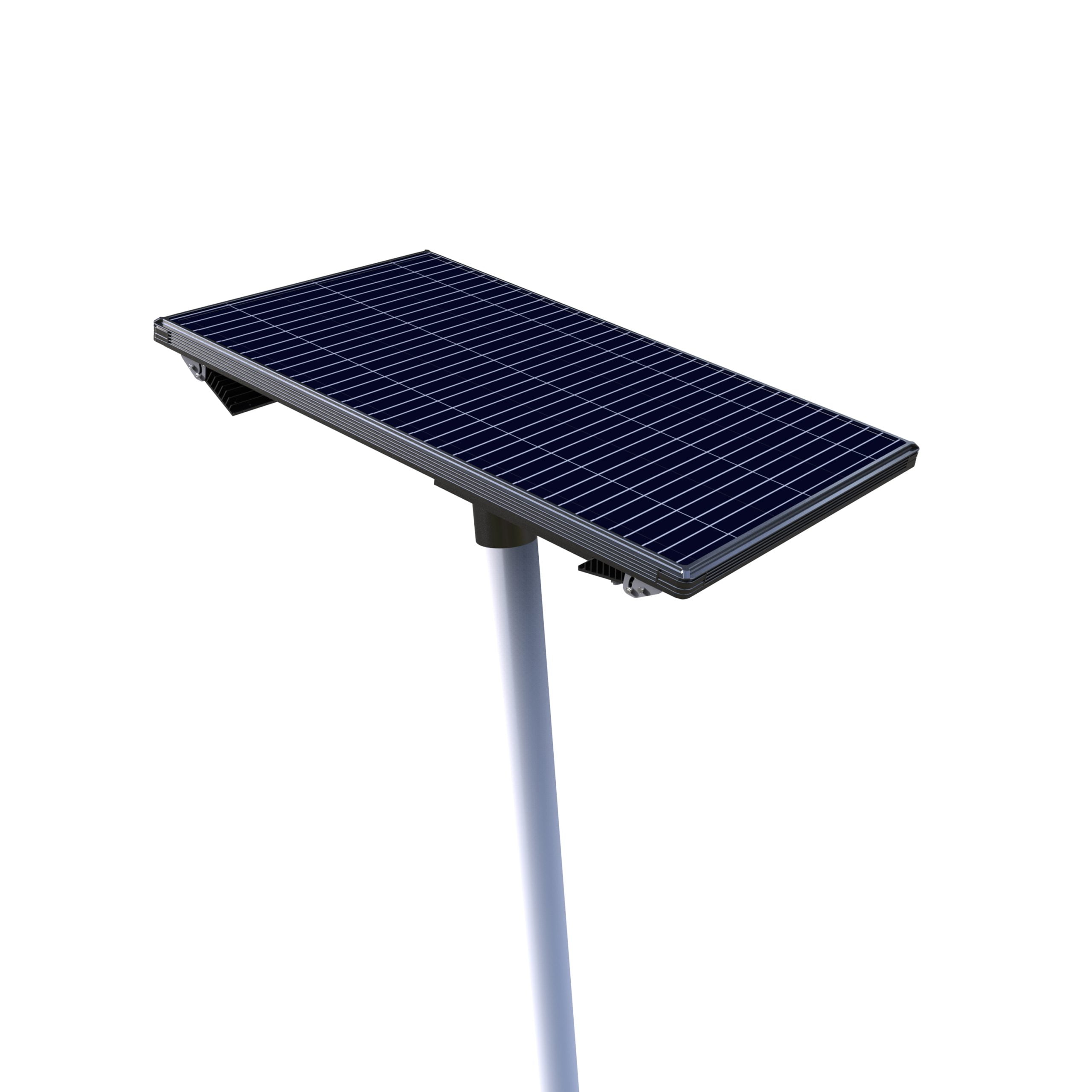

RL-AS110L100

Specification:

  • LED Output: 100W
  • Power: 110W
  • Batt Capacity: 1536Wh 60AH @25.6V
    (3072Wh 120AH @12.8V)
  • Efficiency: 25%
  • Type of solar panel: Black Mono Crystalline Bi-Facial
  • LED output: 100W
  • Life cycle: >1200 cycles (5 years warranty)
  • Charging time: 6-8 hrs/day
  • Pole height: 10-12 m
  • Distance: 35-45 m

Controlled via RF Remote, Bluetooth or Lora the “All In One Series” from Raylightenergy will have you covered for all types of applications.
  • ALL IN ONE SERIES

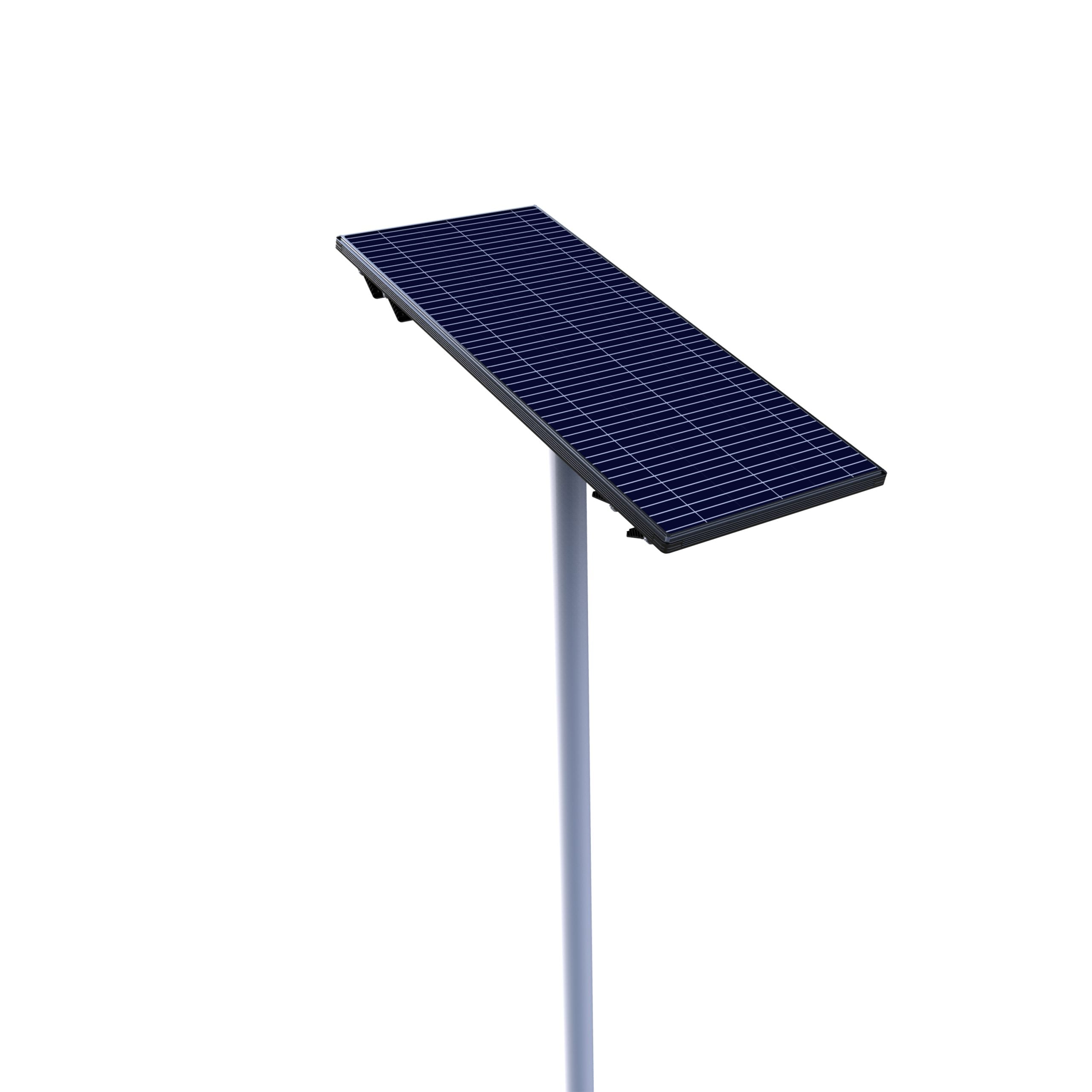

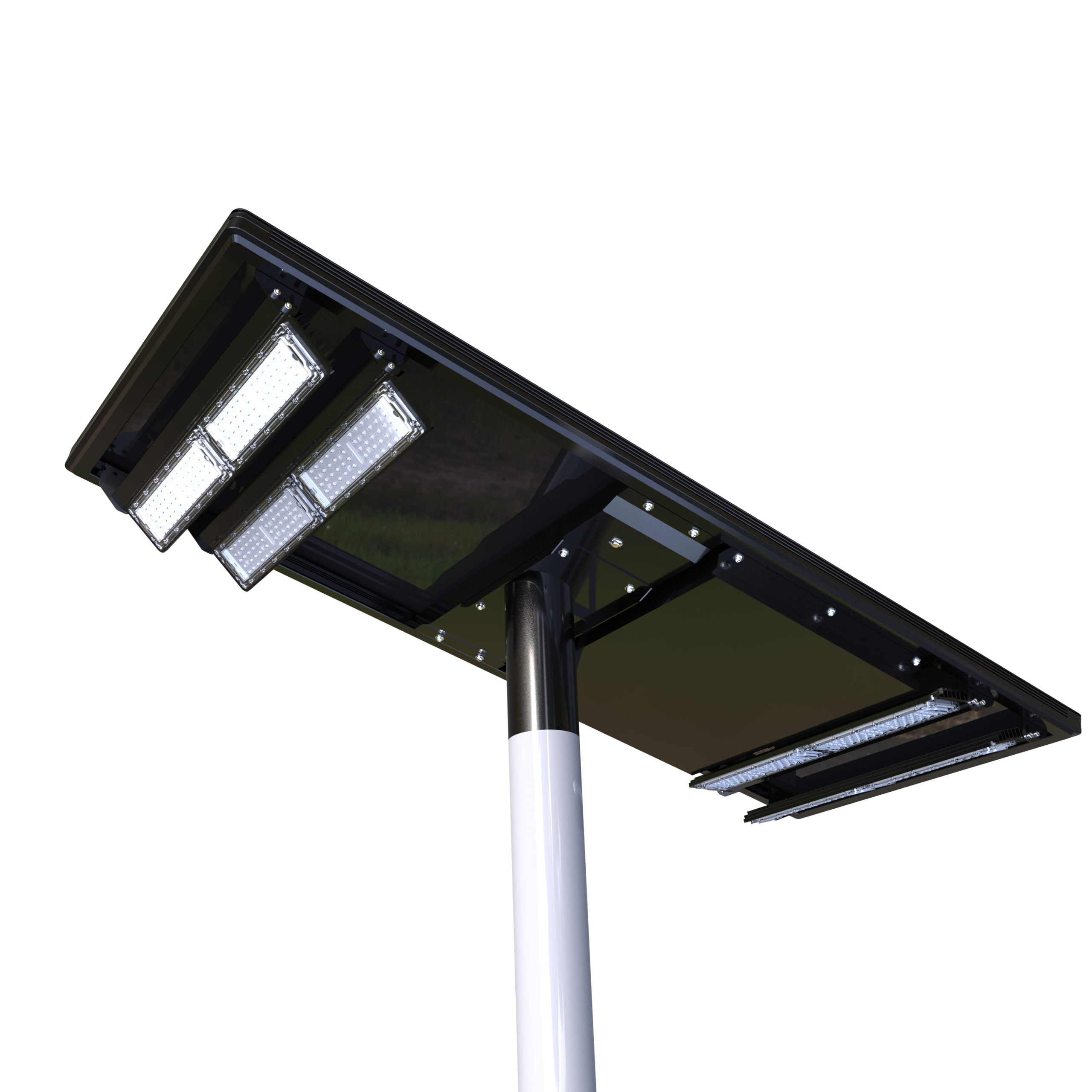

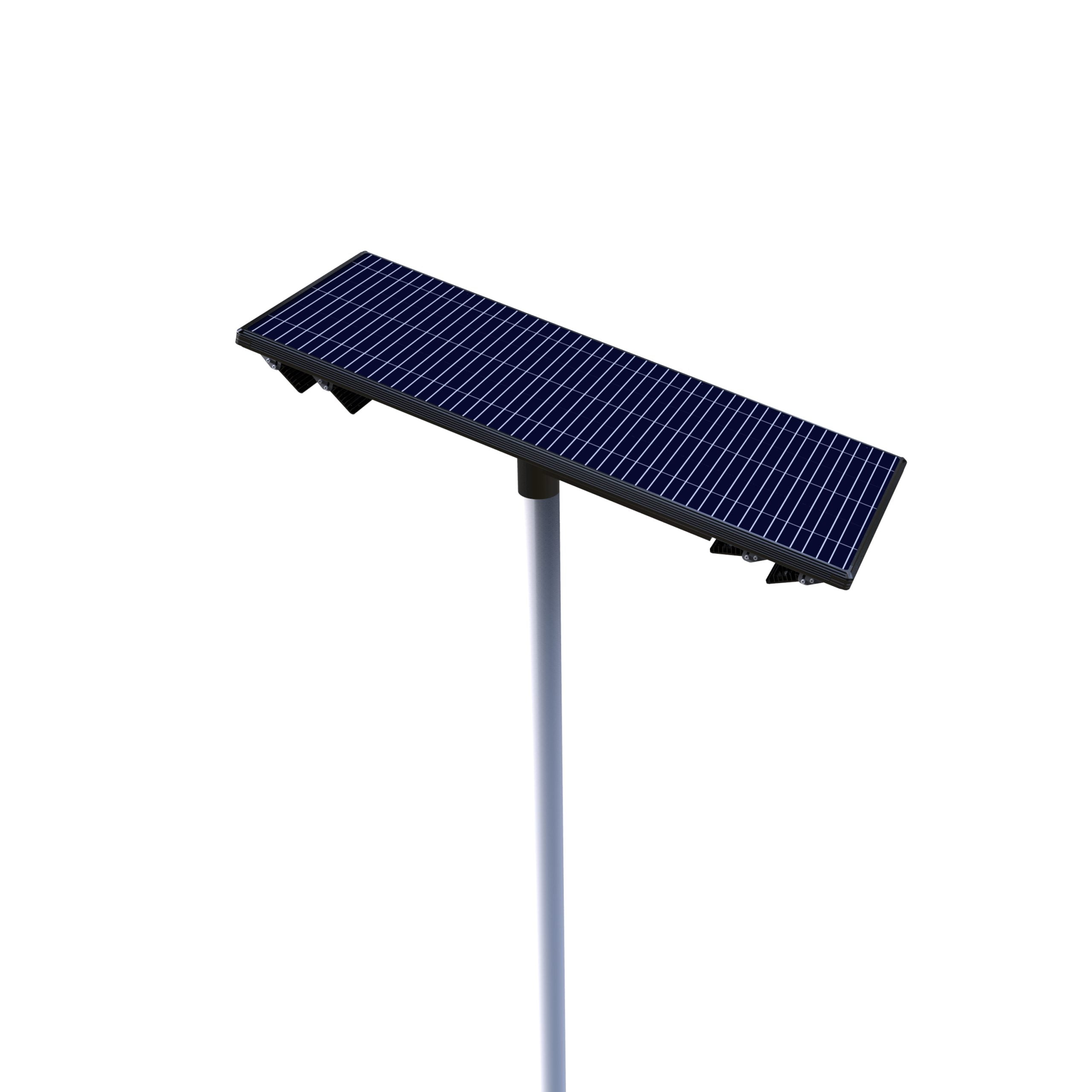

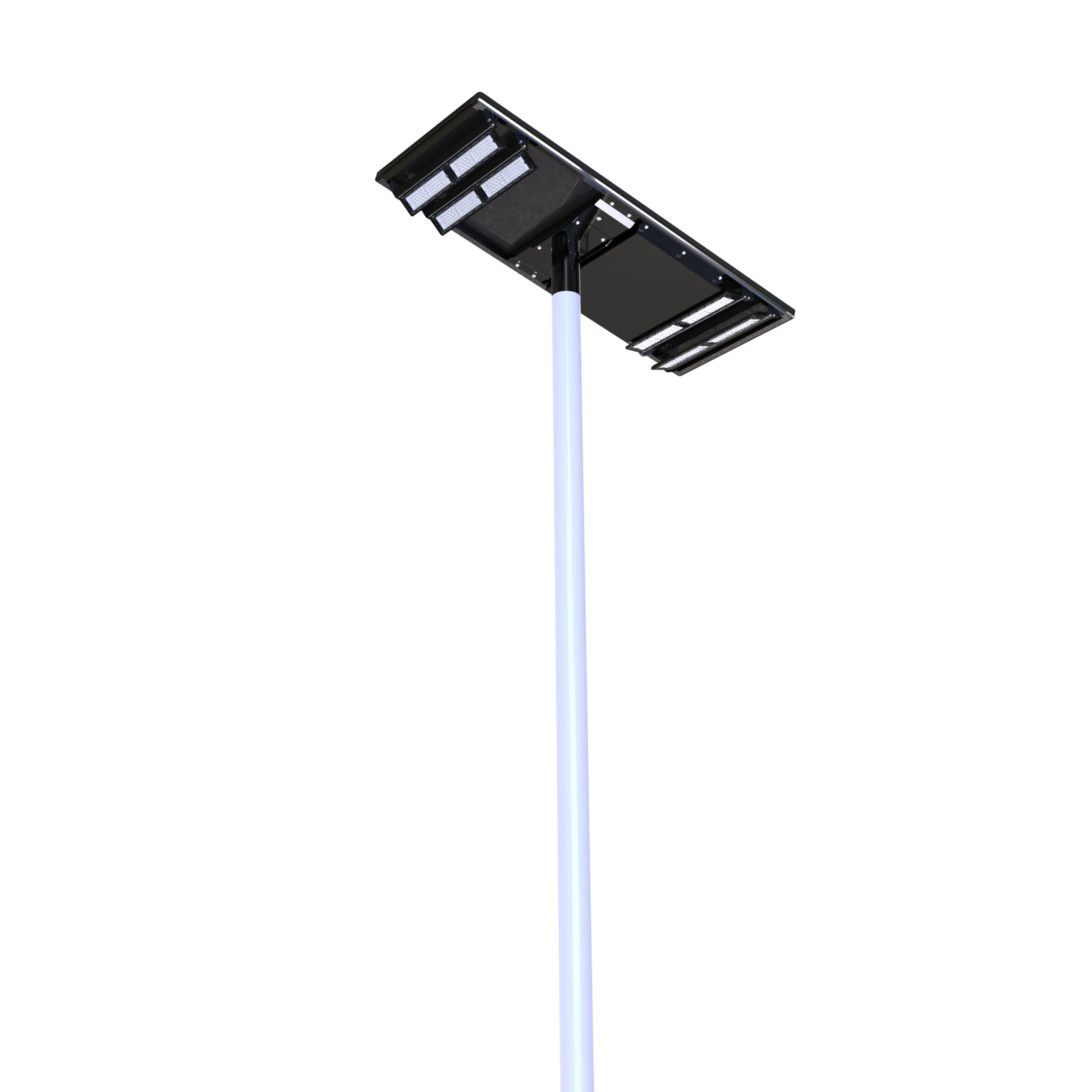

RL-AS160L150

Specification:

  • LED output: 2*120W
  • Power: 160W
  • Batt Capacity: 2048Wh 80AH 2*40AH @25.6V
    (4096Wh 160AH @12.8V)
  • Efficiency: 25%
  • Type of solar panel: Black Mono Crystalline Bi-Facial
  • Life cycle: >1200 cycles (5 years warranty)
  • Charging time: 6-8 hrs/day
  • Pole height: 12-15 m
  • Distance: 35-45 m

Controlled via RF Remote, Bluetooth or Lora the “All In One Series” from Raylightenergy will have you covered for all types of applications.

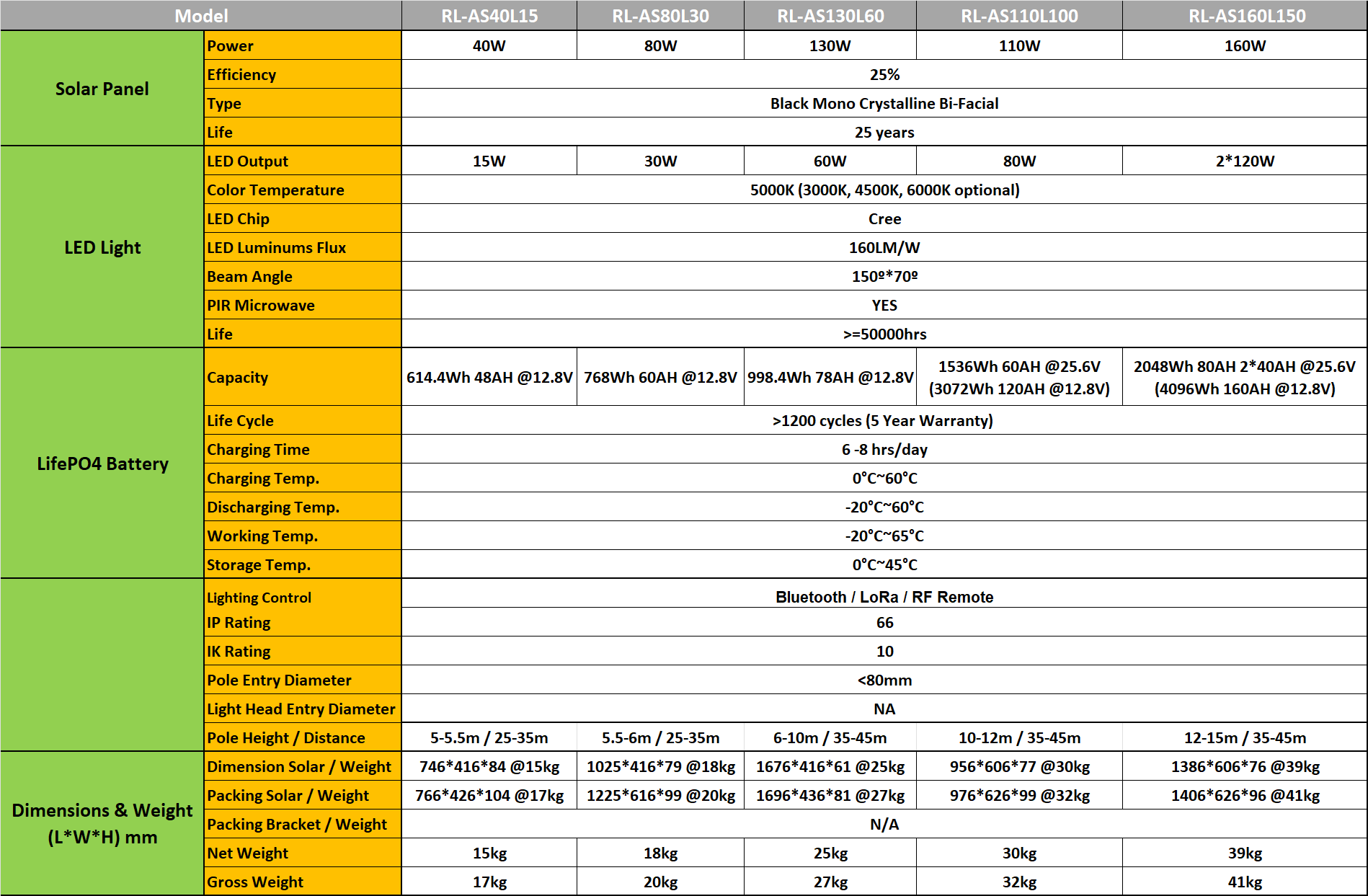

SPECIFICATIONS
